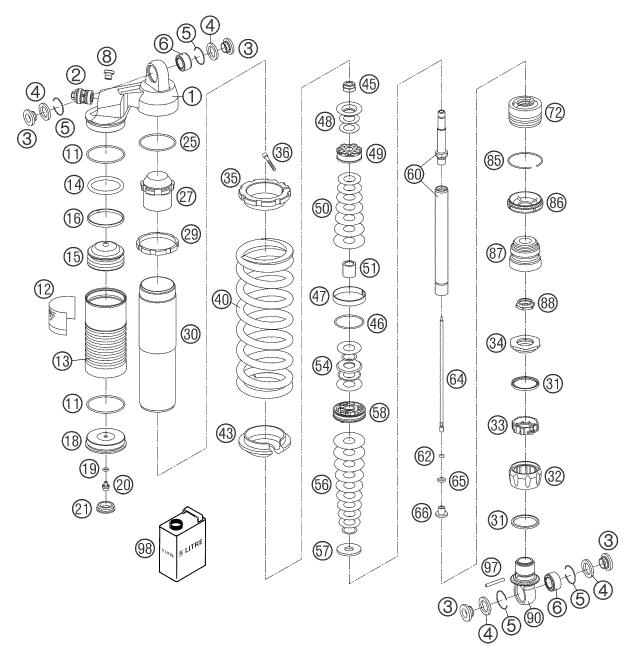

Sprängskiss STÖTDÄMPARE
Nr
Namn
Köp
1
SHOCK ABSORBER TOP VP H=40 PDS
46180316
2
Unknown
50180213S4
Obekräftad
3
Distance bush 12x15/18/24,5x10
46180007 ÅTGÅR 4st
4
Seal ring 19,5x26x3
46180003 ÅTGÅR 4st
2026-07-22
5
Round-wire snap ring 25x1
50180168 ÅTGÅR 4st
6
Ball joint bearing 15x25x13
50180005 ÅTGÅR 2st
8
HS cylinder-head screw R1/8 l8
50180095
11
O-ring 50x2 NBR70 siliconized
46180017 ÅTGÅR 2st
2026-07-22
12
STICKER WP KTM
52000086
Obekräftad
13
RESERVOIR SCREW L=113,5 D=52
46180319
14
O-ring 41x5 NBR70
50180103
15
Piston 52mm reservoir
46180002
2026-07-22
16
Pistonring 47,5x50,5x3,9
46180015
18
RESERVOIR CAP D=58
50180344
19
O-ring 5,28x1,78 NBR70 black
S208600003000FB
20
HS lock screw M5x6
36120151ST
21
Rubber cap do not open 22x5,5
46811208
25
O-ring 48x2 NBR70 siliconized
46810016
27
SLEEVE D=46
46180325
29
LOCK WASHER M52X1,5
46180308
30
TUBE M52X1,5 L=190
46180227
31
SEAL SHAFT RING D=38X3
46180110 ÅTGÅR 2st
32
ADJUSTING DISC REBOUND
46180178
33
CLICKER DISC ALU
46180139
34
CLOSING NUT M27X1
46180141
35
SPRING RETAINER M4
46180328
36
AH SCREW M 4X30
50600053
38
Mainspring (59) 35-215 damper
91010240
Mainspring (59) 40-215 damper
91010161
40
FJÄDER WP 45Nx215mm (Ø59) VIT
91010201
43
SPRING WASHER H=15
50180329
45
Piston rod nut M10x1 black
36120052
2026-07-22
46
O-ring 37x,82x1,78 Viton70 gre
46810035
47
Piston ring 43,95x45,95x8
46811206
48
SHIMS WP 10x19x0,30mm
36120349
2026-07-22
Shim 16x25x0,25
50180032
Washer 10x16x1
50180395
49
Piston 10,05x35,5x13,7 3,5/5,5
14460016
50
SHIMS WP 12x34x0,20mm
46810495
SHIMS WP 12x28x0,20mm
46810492
SHIMS WP 12x30x0,20mm
46810493
SHIMS WP 12x32x0,20mm
46810494
SHIMS WP 12x36x0,20mm
46810496 ÅTGÅR 3st
SHIMS WP 12x28x0,15mm
46810519
SHIMS WP 12x17x0,30mm
46810637
2026-07-22
51
SANDWICH BUSH 12X18X18
46180326
54
SHIMS WP 10x25x0,20mm
36120336
SHIMS WP 10x31x0,20mm
36120339
2026-07-22
SHIMS WP 10x29x0,20mm
36120338
2026-07-22
SHIMS WP 10x27x0,20mm
36120337
2026-07-22
SHIMS WP 10x23x0,20mm
36120335
2026-07-22
SHIMS WP 10x21x0,20mm
36120334
2026-07-22
SHIMS WP 10x16x0,30mm
36120312
56
SHIMS WP 12x36x0,15mm
46810523
2026-07-22
SHIMS WP 12x26x0,20mm
46810491
2026-07-22
SHIMS WP 12x28x0,20mm
46810492
SHIMS WP 12x30x0,20mm
46810493
SHIMS WP 12x32x0,20mm
46810494
SHIMS WP 12x30x0,15mm
46810520
2026-07-22
SHIMS WP 12x34x0,15mm
46810522
SHIMS WP 12x40x0,15mm
46810525 ÅTGÅR 7st
2026-07-22
SHIMS WP 12x17x0,30mm
46810637
2026-07-22
SHIMS WP 12x38x0,15mm
46810524
2026-07-22
57
REBOUND DISC H=0
46180179
Rebound disc 12x34x7 h4
46180337
2026-07-22
58
PISTON 5X4,5X/6X6
46180047
60
SPINDEL+TAP PISTON ROD
46180322S
62
O-ring 2,2x1,6 Viton75 green
46811265
64
NEEDLE REBOUND L=175
46180321
65
O-ring 8x2 NBR70
48600049
66
Needle seat 5x12
50180338
72
ADAPTOR CPL. D=46 H=28
46180323S1
85
Round-wire snap ring 49x1,5
46810010
2026-07-22
86
CAP D=46
46180327
87
Rubber pad 17,2x45,2x40 black
50180276
88
Lock nut M18x1 h7,5 WAF24
46180004
90
SHOCK ABSORBER BOTTOM KGW L=50
46180163
97
PIN D=4X30
46180170
98
WP STÖTDÄMPAROLJA 5 LITER
50180751S1
