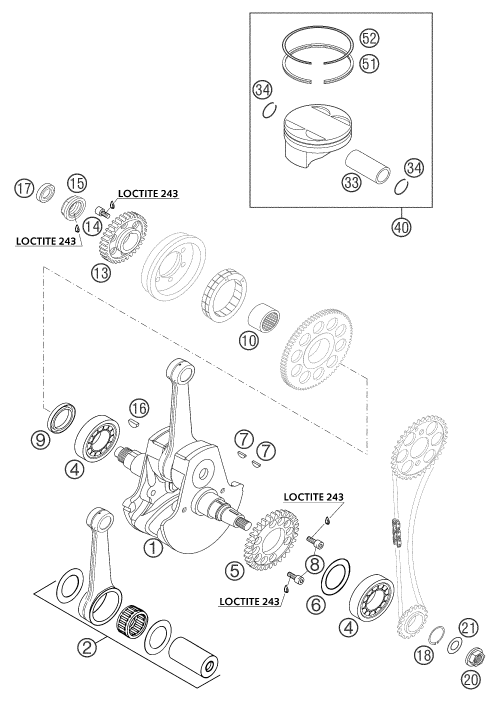

Sprängskiss VEVAXEL, KOLV
Nr
Namn
Köp
1
CRANKSHAFT 520 SX 20
59030018600
CRANKSH. 450 SX STR=63,4 03
59430018100
2
CON.ROD REP.SET 250/520 RAC.00
59030015044
Obekräftad
VEVSTAKE KTM 250/450/520/525
12-1-8666
2026-06-09
CON.ROD REP.SET 450 RAC. 03
12-1-8665
4
RAMLAGER KTM NJ206 ET2xCS46
50330082000 ÅTGÅR 2st
BALL BEARING 6306 C4
12-206-8
2026-06-09
5
DRIVE GEAR 32-T F.BALANC.SHAFT
59030055000
6
THRUST WASHER 30,5X45X0,10
56030081000
THRUST WASHER 30,7X47X0,15
56030081100
THRUST WASHER 30,5X45X0,30
56030081200
7
KRYSSKIL 3x5x13mm
0888030050 ÅTGÅR 2st
2026-06-09
8
AH SCREW DIN7984-M 6X16
0984060162 ÅTGÅR 2st
9
SHAFT SEAL RING 30X47X7 BSL
0760304772
10
NEEDLE BEARING HK 3016 B
0618301617
13
PRIMARY GEAR 33-T
59032000033
14
AH SCREW DIN0912-M 6X10 10.9
0912060106 ÅTGÅR 6st
15
HH NUR M20X1,5 WS=27 LEFT
59030029100
16
WOODRUFF KEY 5X6,5 HARDED
6946005
2026-06-09
17
radial shaft seal 14x24x6 B
0760142460
18
CIRCLIP DIN0471-25X1,2
0471250120
20
COLLAR NUT M12X1 R/S
49030021100
2026-06-09
21
SPRING WASHER DIN0137-B12
0137120000
33
PISTON PIN BOLT 20X15,8/12X50
59030033000
34
CIRCLIP 20 X 1,6
59430074000 ÅTGÅR 2st
CIRCLIP C20X1,5
59030074000 ÅTGÅR 2st
40
KOLV 450-540 94,93mm KLASS I (A)
59430107100I
PISTON CPL.450 SX D=95 SI.2
59430107100II
KOLV KTM450SX 03-06 94,94mm VX
11-2941-B
KOLV KTM450SX 03-06 94,95mm VX
11-2941-C
2026-06-09
KOLV 450/525 KLASS I 94,93mm (A)
59030007000I
KOLV 450/525 KLASS II 94,94mm (B)
59030007000II
2026-06-09
KOLV KTM520/525 00-07 94,94mm
11-2942-B
51
OIL SCRAPER RING 95MM
58030631000
OIL SCRAPER RING 95/88,5X2,5
59430031000
52
RECTANGULAR RING 95/87,2X1,25
59030032000
