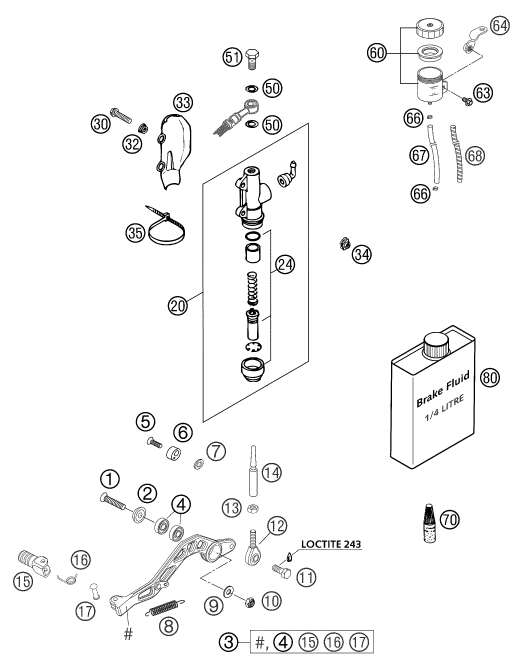

Sprängskiss REAR BRAKE CONTROL
Nr
Namn
Köp
1
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
2
SPECIAL WASHER ALU 8 X 24 MM
58303061000
3
FOOT BRAKE LEV. FOLDING CPL.04
58403070244
4
KULLAGER 608 2RS C3
0625006087 ÅTGÅR 2st
5
FLAT H.SCREW DIN7991-M6X20
0991060202
6
BRAKE LEVER STOP LC4
58413048000
7
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
8
RETURN SPRING
13003062000
9
washer DIN 125 A -8.4
0125080003
10
SELF LOCKING NUT DIN0985-M 8
0985080003
11
HH SCREW DIN0933-M 8X22 8.8
0933080223
12
HEIM JOINT M8 W=12MM
58303062000
2026-09-04
13
Hexagon nut DIN934 M8
0934080003
14
PUSH ROD STEEL 660SM L=60
57313056000
15
STEP PLATE FOR SHIFT LEVER 250
54634131000
16
SHIFTING LEVER SPRING 250
54634032100
17
BOLT 6X25 FOR SHIFT LEVER
54634031050
20
MAIN BRAKE CYLINDER
54513101144
24
REPAIR KIT PISTON 13MM
54513150000
30
SKRUV (KRAGE) M6x25 TX30
0025060256 ÅTGÅR 2st
32
COLLAR BUSHING
50213161000 ÅTGÅR 2st
33
BRAKE CYL. PROTECTOR ''BREMBO'
54513038000
2026-09-04
34
SNAP-NUT HOLDER M6 KP142
54603048100 ÅTGÅR 2st
35
BUNTBAND 300x4,8mm SVART
44011076305
50
KOPPARBRICKA 10x16x1mm
42013226000 ÅTGÅR 2st
51
BANJOBULT M10x1x19mm (BROMS)
50213025000
60
BRAKE FLUID RESERVOIR
54513030044
63
SKRUV (KRAGE) M6x10 TX30
0024060106
64
ANGLE BRACKET F. BRAKE FL.RES.
57313068000
66
YDNAC-clamp 10101 (10.4MM)
58007017000 ÅTGÅR 2st
67
HOSE FOR RESERVOIR 6X1,5
57313072001
2026-09-04
68
SPIRAL HOSE D=9MM PER METER
58513001000
2026-09-04
70
LOCTITE 243 BLUE 5 ML
38-2920
80
BROMSVÄTSKA DOT 5.1
00062030000
BROMSVÄTSKA DOT 5.1
38-1471
