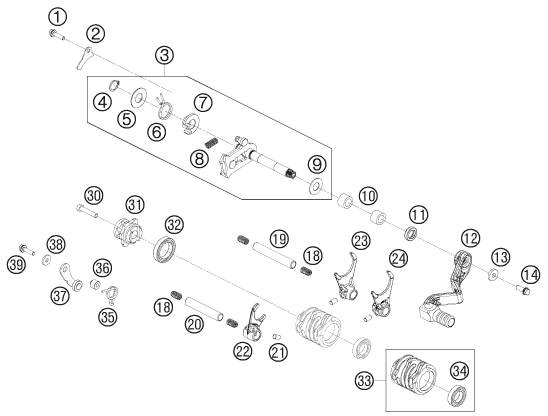

Sprängskiss VÄXELMEKANISM
Nr
Namn
Köp
1
SKRUV (KRAGE) M5x12 TX30
0025050126
2
SHIFTING SHAFT FENDER RET. PL.
46234005110
3
SHIFT SHAFT CPL.
46234005144
2026-06-09
4
retaining ring DIN 471 14x1
0471140100
5
STOP DISK 14X30X1
54634050000
6
RETURN SPRING
54834014000
2026-06-09
7
SPRING GUIDE
54634020000
8
TENSIONING SPRING 0,8MM
56534013100
2026-06-09
9
STOP DISK 12,1X25X1
49033013000
2026-06-09
10
NEEDLE BEARING 12X18X12
46034027000 ÅTGÅR 2st
2026-06-09
11
SHAFT SEAL RING 12X20X5 B
0760122050
12
VÄXELSPAK 65SX 09-23
46234031044
2026-06-09

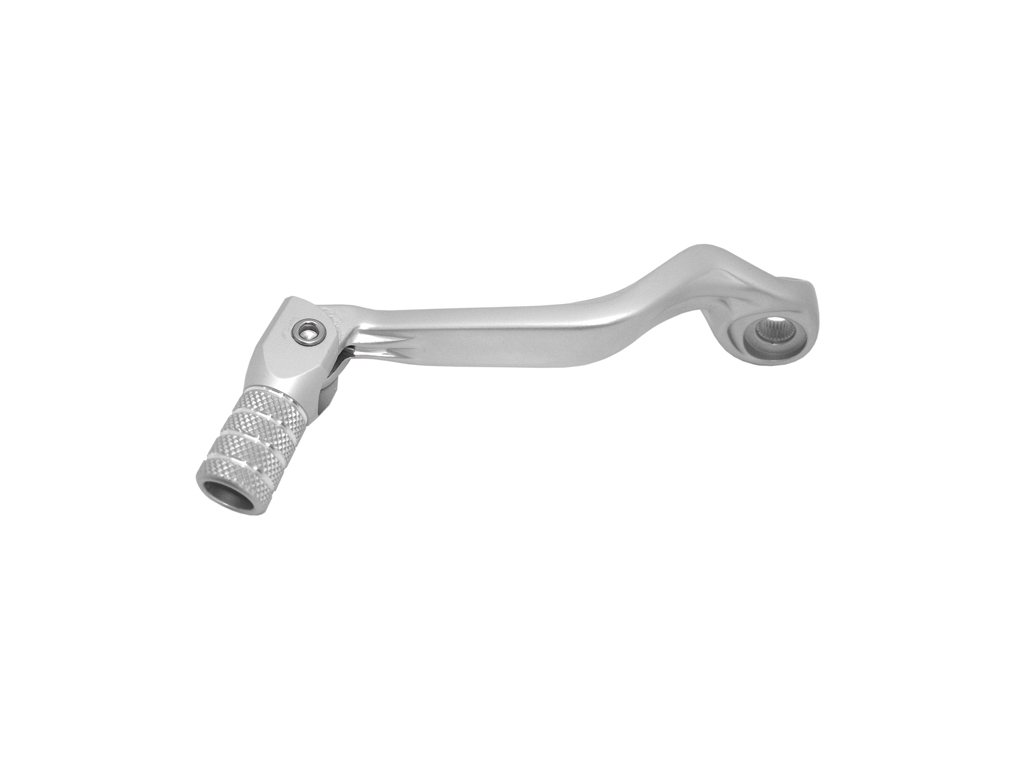

VÄXELSPAK KTM 65SX 09-23
06-1502-1
13
STEEL WASHER 6,4X17X3
50232050001
14
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
18
PRESSURE SPRING 0,9MM
58038023200 ÅTGÅR 4st
19
SHIFTING RAIL COUNTER SHAFT
46234019000
20
SHIFTING RAIL MAIN SHAFT
46234020000
21
NEEDLE ROLLER ZRB 6X10
0402061000 ÅTGÅR 3st
22
SHIFT FORK MAIN SHAFT
46234001000
23
SHIFT FORK COUNTERSHAFT R/S
46234002000
24
SHIFT FORK COUNTERSHAFT Ll/S
46234003000
30
AH SCREW DIN6912 M6X30 8.8
0012060303
31
SHIFT DRUM LOCATING CPL.
46234015100
32
KULLAGER 61805 C3
0625618050
33
SHIFT ROLLER CPL.
46234012033
34
BALL BEARING 6903 C4
0625069034
35
LOCKING LEVER SPRING
54834023000
36
SLEEVE FOR LOCKING LEVER
54634052300
37
LOCATING LEVER CPL.
50334024144
38
WASHER DIN7349-5X15X2
0349000050
2026-06-09
39
SKRUV (KRAGE) M5x20 TX30
0025050206
