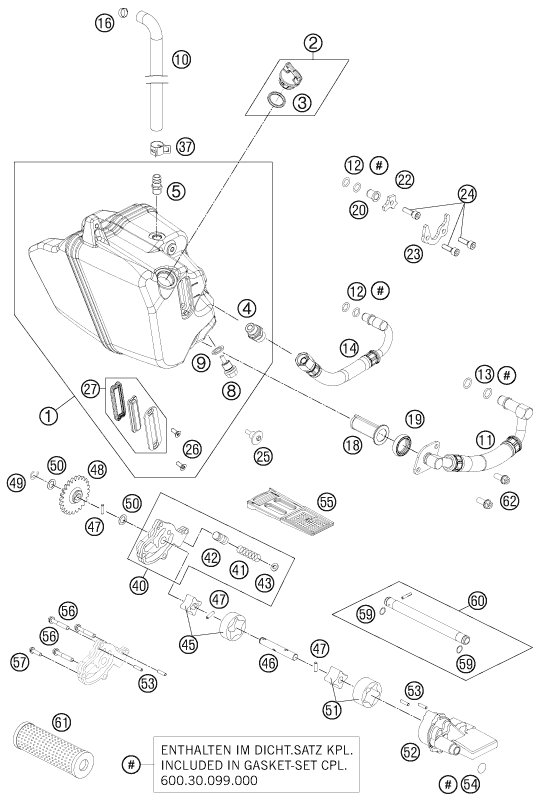

Sprängskiss OLJESYSTEM, SMÖRJNING
Nr
Namn
Köp
1
OIL TANK CPL.
62638081033
2026-06-09
2
oil plug cpl. M24x3
58030020100
2026-06-09
3
O-RING 19,00X3,00 NBR
0770191015
4
PIPE FITTING
62638081060
5
BLEEDER FLANGE M12X1,5 WS=13
59030022100
8
OILDRAIN PLUG W.MAG. M 12X1,5
58030021100
2026-06-09
9
CU-seal ring DIN7603-12X18X1.5
58038022000
ALUMINIUMBRICKA 12x18x1,5, TÄTAR BÄTTRE
58038022000-1
10
PREFORMED HOSE 9X15
62538034030
2026-06-09
11
SUCTION PIPE CPL
62638060000
Obekräftad
12
O-RING 9X2 VITON
0770090021 ÅTGÅR 4st
13
O-RING 11X2 VITON
0770110021 ÅTGÅR 2st
14
RETURN OIL LINE CPL
62638061000
2026-06-09
16
VARIABLE ONE-EAR CLAMP 17,0MM
00050170706
2026-06-09
18
OIL SCREEN FINISHED
60038017000
19
GASKET FOR OIL FILTER HNBR
60038018000
20
PLUG 10MM LC8
60038024000
22
RETAINING PLATE 2 LC8
60038037000
23
RETAINING PLATE 1 LC8
60038036000
24
AH SCREW DIN0912-M 6X16
0912060163 ÅTGÅR 3st
25
SCREW OIL TANK FIXING
60038083000 ÅTGÅR 3st
26
COUNTERSUNK SCREW ISA25 M5X12
0019050121 ÅTGÅR 2st
27
OIL SIGHT GLASS CPL.
62638084044
37
CLAMP STD DN16
00049160121
40
PRESSURE PUMP CASE
60038010133
41
CONTROL SPRING LC8 3,5 BAR
60038026000
42
CONTROL PISTON LC8 03
60038128000
2026-06-09
43
shim
50337073000
2026-06-09
45
ROTOR-SET PRESSURE PUMP
60038011000
46
OIL PUMP SHAFT 03
60038002100
2026-06-09
47
needle roller NRB 4x15.8 G2
0402041580 ÅTGÅR 3st
48
OIL PUMP GEAR 24-T
60038001224
49
retaining washer DIN 6799 - 8
0799080000
50
washer 10x16x0.5
60038007010 ÅTGÅR 2st
51
ROTOR-SET 19MM
60038009000
52
SUCTION PUMP CASE
60038008000
2026-06-09
53
Needle roll.DIN5402 NRB 4X9.8
0402040980 ÅTGÅR 4st
54
O-RING 13,3X2,4 VITON
0770133024
55
OIL SCREEN
60038016000
56
SKRUV (KRAGE) M6x40 TX30
0025060406 ÅTGÅR 3st
57
SKRUV (KRAGE) M6x25 TX30
0025060256
59
o-ring 10.00x1.00 NBR70
0770010010 ÅTGÅR 2st
60
OIL INJECTION TUBE GEAR
60030065100
2026-06-09
61
OLJEFILTER 2-CYL
61338015200
OLJEFILTER KTM EKONOMI LC8
08-538
62
SKRUV (KRAGE) M6x16 TX30
0025060166 ÅTGÅR 2st
