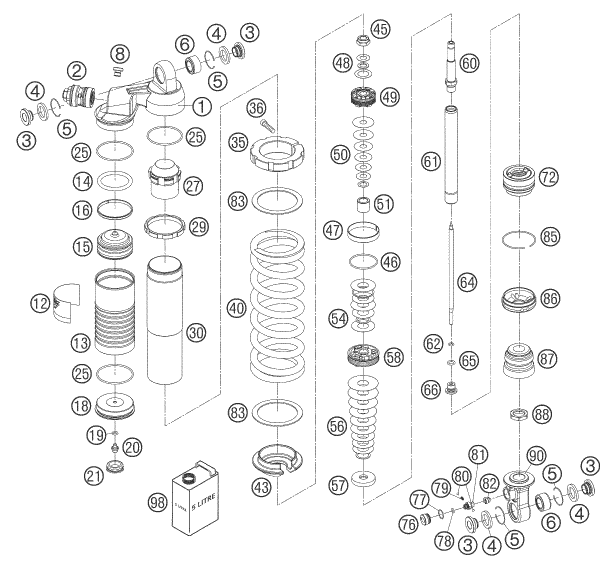

Sprängskiss STÖTDÄMPARE I DELAR
Nr
Namn
Köp
1
SHOCK ABSORBER TOP H40 135DEG.
46180348
2
Unknown
50180213S4
Obekräftad
3
Distance bush 12x15/18/24,5x10
46180007 ÅTGÅR 4st
4
Seal ring 19,5x26x3
46180003 ÅTGÅR 4st
5
Round-wire snap ring 25x1
50180168 ÅTGÅR 4st
2026-06-09
6
Ball joint bearing 15x25x13
50180005 ÅTGÅR 2st
8
HS cylinder-head screw R1/8 l8
50180095
12
STICKER WP 35X55
52000086
Obekräftad
13
RESERVOIR SCREW L=113,5 D=52
46180319
14
O-ring 41x5 Viton75
46180014
15
Piston 52mm reservoir
46180002
2026-06-09
16
Pistonring 47,5x50,5x3,9
46180015
18
RESERVOIR CAP D=58
50180344
19
O-ring 5,28x1,78 NBR70 black
S208600003000FB
2026-06-09
20
HS lock screw M5x6
36120151ST
21
Rubber cap do not open 22x5,5
46811208
25
O-ring 48x2 NBR70 siliconized
46810016 ÅTGÅR 3st
27
SLEEVE D=48
46180340
29
LOCK WASHER M52X1,5
46180352
30
TUBE M52X1,5
46180345
35
SPRING RETAINER M52X1,5
46180353
36
AH SCREW DIN0912-M 5X25
0912050253
40
Mainspring (59) 40-215 damper
91010161
Mainspring (59) 35-215 damper
91010240
FJÄDER WP 45Nx215mm (Ø59) VIT
91010201
43
Spring retainer 28x56x15
46180349
2026-06-09
45
PISTON ROD NUT M10X1
46180356
2026-06-09
46
O-ring 37x,82x1,78 Viton70 gre
46810035
47
Piston ring 43,95x45,95x8
46811206
48
SHIMS WP 10x19x0,30mm
36120349
2026-06-09
Shim 16x25x0,25
50180032
Washer 10x16x1
50180395
49
Piston 10,05x35,5x13,7 3,5/5,5
14460016
50
SHIMS WP 10x21x0,20mm
36120334
2026-06-09
SHIMS WP 10x31x0,20mm
36120339
2026-06-09
SHIMS WP 10x29x0,20mm
36120338
2026-06-09
SHIMS WP 10x27x0,20mm
36120337 ÅTGÅR 3st
2026-06-09
SHIMS WP 10x25x0,20mm
36120336
SHIMS WP 10x23x0,20mm
36120335
2026-06-09
SHIMS WP 10x16x0,30mm
36120312
51
SEPARATION BUSH 17X12X18
46180339
54
SHIMS WP 12x28x0,20mm
46810492
SHIMS WP 12x17x0,30mm
46810637
2026-06-09
SHIMS WP 12x28x0,15mm
46810519
SHIMS WP 12x36x0,25mm
46810505 ÅTGÅR 2st
2026-06-09
SHIMS WP 12x32x0,20mm
46810494
SHIMS WP 12x34x0,20mm
46810495
SHIMS WP 12x30x0,20mm
46810493
2026-06-09
56
SHIMS WP 12x26x0,20mm
46810491
2026-06-09
SHIMS WP 12x17x0,30mm
46810637
2026-06-09
SHIMS WP 12x40x0,15mm
46810525 ÅTGÅR 7st
2026-06-09
SHIMS WP 12x38x0,15mm
46810524
2026-06-09
SHIMS WP 12x36x0,15mm
46810523
2026-06-09
SHIMS WP 12x34x0,15mm
46810522
SHIMS WP 12x30x0,15mm
46810520
2026-06-09
SHIMS WP 12x32x0,20mm
46810494
SHIMS WP 12x30x0,20mm
46810493
2026-06-09
SHIMS WP 12x28x0,20mm
46810492
57
REBOUND DISC H=0
46180179
Rebound disc 12x34x7 h4
46180337
2026-06-09
58
PISTON 5X4,5X/6X6
46180047
60
TAP PISTON ROD D=13,5
46180343
61
SPINDEL D=18 LC=159
46180342S
62
O-ring 5x1,5 Viton70
50180397
Obekräftad
64
NEEDLE REBOUND L=169
46180346
65
O-RING NBR 7,5X2
46180018
2026-06-09
66
NEEDLE GUIDE
46180350
72
ADAPTOR CPL. D=46 H=28 D=38
46180341S
76
RESERVOIR CAP M16X1
46180005
77
O-ring 12x1 NBR70
46180013
2026-06-09
78
O-ring 4x1,5 NBR70
50180222
2026-06-09
79
Spring (1,7) l7,9
48600028
80
Steel ball d3
40540603 ÅTGÅR 2st
81
Adjustment screw slot rebound
46180006
82
Adjustment screw slot rebound
46180016
83
Washer 58,6x73,6x1,5
50180410 ÅTGÅR 2st
85
Round-wire snap ring 49x1,5
46810010
2026-06-09
86
Cover 46,12x6,2 h15,7
46180338
87
Rubber pad 17,2x45,2x40 black
50180276
88
HH locking nut M18x1 h5 WAF24
50180283
90
SHOCK ABSORBER BOT. KGW L=54,5
46180347
98
WP STÖTDÄMPAROLJA 5 LITER
50180751S1
2026-06-09
