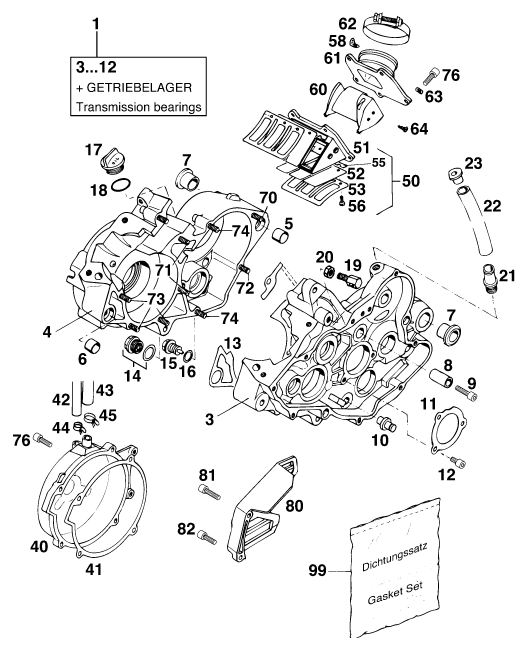

Sprängskiss VEVHUS, MOTORBLOCK
Nr
Namn
Köp
1
ENGINE CASE CPL.
50230000844
5
* DOWEL 17X15,5X12
56030027000
6
DOWEL 17 X 13 X
51030026100
7
CRANK CASE BUSH
50130010000 ÅTGÅR 2st
8
BUSHING BOLT
50133025000
9
AH SCREW DIN0912-M 6X25
0912060253
10
SPRINGBOLT
50234021000
11
BUSHING RETAINING PLATE
50230017000
12
AH SCREW DIN0912-M 6X10
0912060103 ÅTGÅR 3st
13
CASE GASKET
50230039000
14
LENS TYPE GN 540
49030095000
15
OILDRAIN PLUG W.MAG. M 12X1,5
58030021100
2026-06-09
16
CU-seal ring DIN7603-12X18X1.5
58038022000
ALUMINIUMBRICKA 12x18x1,5, TÄTAR BÄTTRE
58038022000-1
17
PLUG M 24X3
79430020033
18
O-RING 16,00X3,00 NBR 70
0770160030
19
* CABLE BEARING WS13
56032019000
20
HEXAGON NUT DIN0936-M 8
0936080003
21
BLEEDER FLANGE D=10MM 495/IV
56530022000
22
HOSE 12X16 PER METER
54307018001
23
PLASTIC CAP
44106018000
40
IGNITION CASE COVER ALU
50230002100
41
IGNITION COVER GASKET
50230040000
42
BREATHER TUBE GI 8x2 /METER
58031005001
43
HOSE 10X14 PER METER
57005020001
44
HOSE CLAMP YDNAC 10119 11MM
50231005000
45
Unknown
58031005100
50
REED VALVE CPL
50230051044
51
REED VALVE CASE
54230051000
52
REED VALVE CARBON 125
50230052000 ÅTGÅR 2st
53
STOP PLATE TOP
54630053000 ÅTGÅR 2st
55
PAPER STRIP
54230056000 ÅTGÅR 2st
56
CYL.HEAD SCREW DIN0084-M 4X8 A
0084040083 ÅTGÅR 6st
58
RETAINING PLATE
51005074000
60
* VELOCITY INSERT 125
50230054100
61
INTAKE FLANGE
50230050000
62
Hose clip GEMI 52mm
54330061000
63
SPRING WASHER DIN0137-B 6
0137060003 ÅTGÅR 5st
64
Unknown
0983420132 ÅTGÅR 4st
70
SHCS DIN 912 M6x65
0912060653
71
AH SCREW DIN0921-M 6X60
0912060603 ÅTGÅR 2st
72
AH SCREW DIN0912-M 6X55
0912060553
73
AH SCREW DIN0912-M 6X50
0912060503 ÅTGÅR 3st
74
AH SCREW DIN0912-M 6X30
0912060303
76
AH SCREW DIN0912-M 6X20
0912060203 ÅTGÅR 9st
2026-06-09
80
CHAIN GUARD FRONT
54530060000
81
AH SCREW DIN0912-M 6X25
0912060253
82
AH SCREW DIN0912-M 6X20
0912060203
2026-06-09
99
GASKET SET 125 '87-'96
13-1111
